Product details

The As Series laser tubes incorporate advanced metal heat sinks and heat disspation head designs, coupled with metal catalytic reduction technology. These features ensure an high quality beam mode, exceptional stability, and extended service life, making them highly effective for both cutting and engraving tasks. Notably, the A6s and A8s models deliver outstanding cutting performance on both metal and non-metal sheets, offering superior results across various applications.

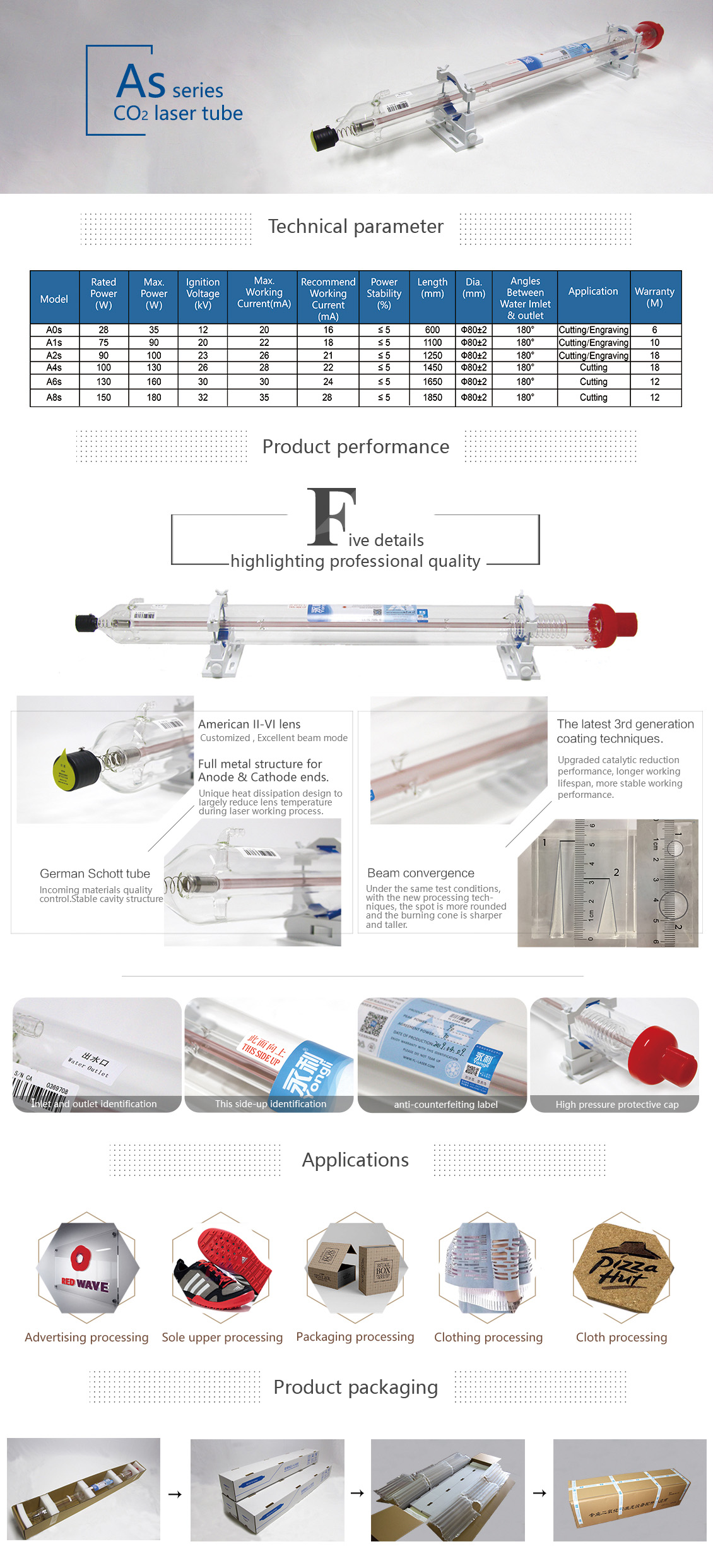

Product outline


 High-Performance
ModelYongli A4s CO2 Laser Tube
Rated Power 100 W
Peak Power 130 W
Length1450 mm
Working Current28 mA
Recommend Working Current 22 mA
Ignition Voltage 25 kV
Working Voltage19 kV
Outer Diameterφ80 mm
Working Life12000 Hours
CatalystYES, Islands Structural (Gold) Coating
Warranty12 Months
