CO₂ Laser Tube

As Series CO₂ Laser tube
H Series CO₂ Laser tube
B Series CO₂ Laser tube
R Series CO₂ Laser tube
CG series laser tube
T Series CO₂ Laser tube

Product details

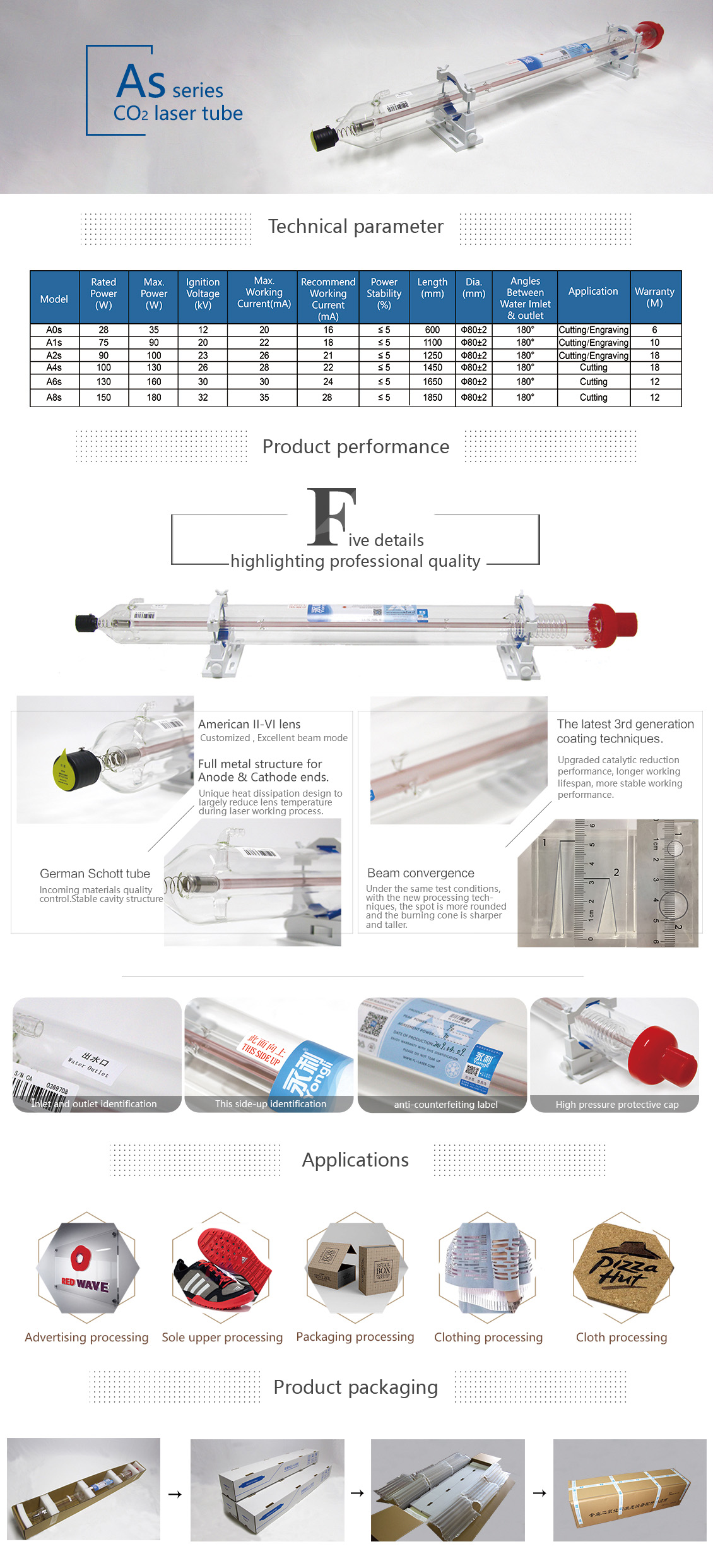

The As Series laser tubes incorporate advanced metal heat sinks and heat disspation head designs, coupled with metal catalytic reduction technology. These features ensure an high quality beam mode, exceptional stability, and extended service life, making them highly effective for both cutting and engraving tasks. Notably, the A6s and A8s models deliver outstanding cutting performance on both metal and non-metal sheets, offering superior results across various applications.

Product outline



High-Performance
ModelYongli A1s Co2 Laser Tube
Rated Power 75 W
Peak Power 90 W
Length1100 mm
Red Point IndicatorOptional
Working Current22mA
Rmd Working Current 18 mA
Ignition Voltage 20 kV
Working Voltage15 kV
Outer Diameterφ80 mm
Working Life8000 Hours
CatalystYes, Islands Structural (Gold) Coating
Warranty10 Months
