Product details

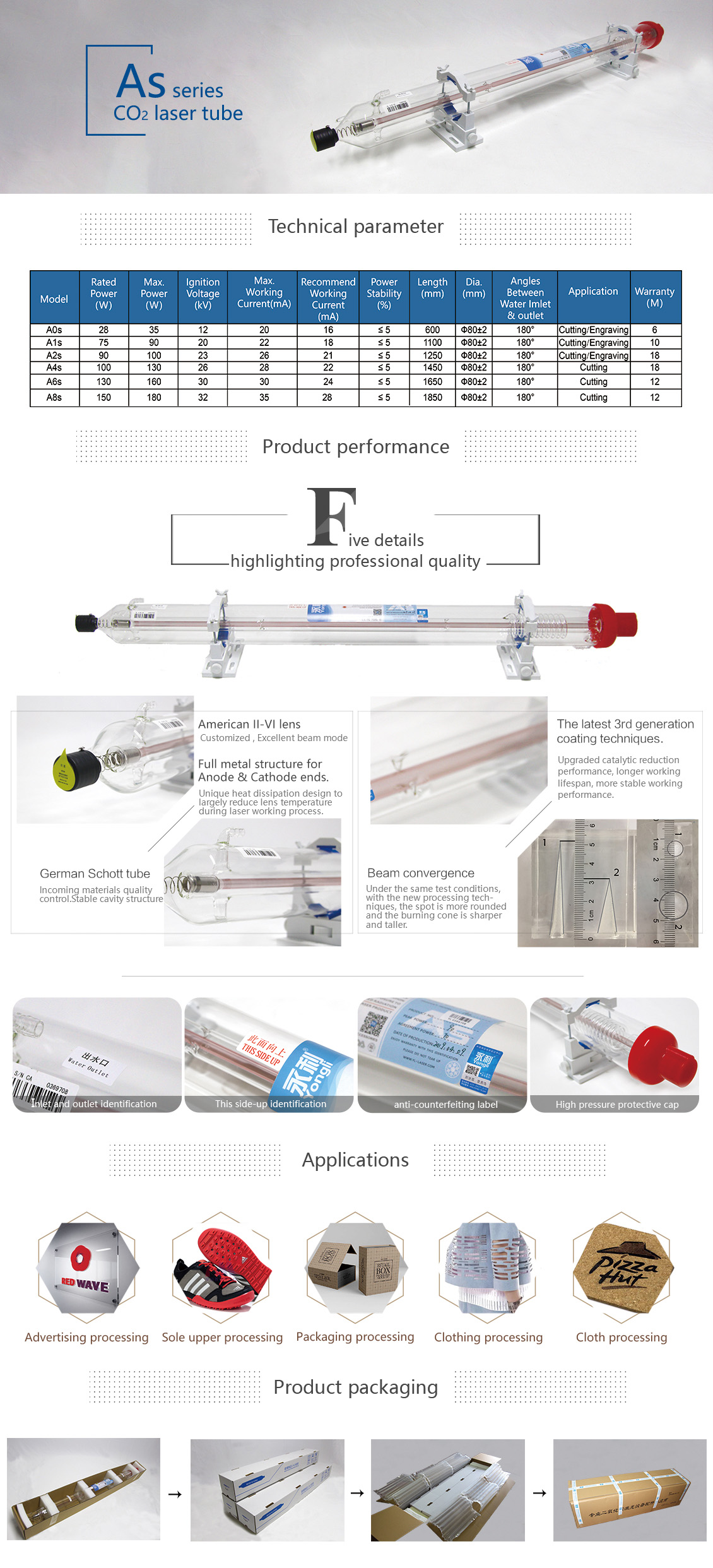

The As Series laser tubes incorporate advanced metal heat sinks and heat disspation head designs, coupled with metal catalytic reduction technology. These features ensure an high quality beam mode, exceptional stability, and extended service life, making them highly effective for both cutting and engraving tasks. Notably, the A6s and A8s models deliver outstanding cutting performance on both metal and non-metal sheets, offering superior results across various applications.

Product outline


High-Performance
ModelYongli A6s CO2 Laser Tube
Rated Power130 W
Peak Power160 W
Length1650 mm
Red PointerOptional
Working Current30 mA
Recommend Working Current 24 mA
Ignition Voltage 30 kV
Working Voltage21 kV
Outer Diameterφ80 mm
Working Life12000 Hours
CatalystYES, Islands Structural (Gold) Coating
Warranty12 Months
