产品概要

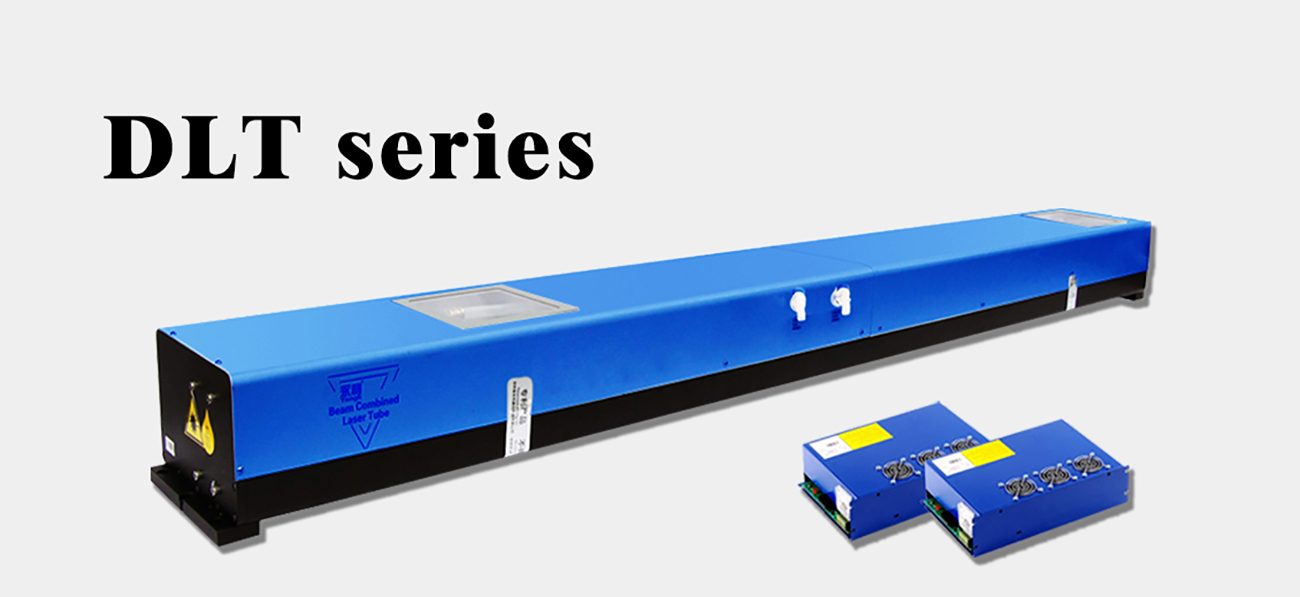

DLT合束激光器具有专用的合束装置方案模具一体化设计、安装使用、运输及维护便捷、使用寿命长、输出功率高、功率范围可调整、光斑模式稳定等特点,是激光加工机制造企业配套的非金属厚板材及薄金属板材加工的首选配件。广泛应用于刀模加工、印刷包装、广告装饰、家具、工艺礼品、木制品加工、薄钢板加工、皮革制品加工等行业。

产品详情


产品参数

型号

Model

额定功率

Rated Power

(W)

最大功率

Max.Power

(W)

起辉电压

Ignition

Voltage(kV)

工作电压

Operating voltage(kV)

最大工作电流Max Working Current(mA)

建议工作电流

Recommend    Working Current(mA)

功率不稳定度

Power Instability(%)

尺寸Size

LxWxH (mm)

建议安装尺寸

Recommended Installation Space LxWxH (mm)

质保期

Warranty

(M)

DLT-300P

290

310

40

26

40

36

≤5

1850x270x146

2000x400x200

12

DLT-40Z

300

320

40

26

40

 36

≤5

1850x270x146

2000x400x200

18

DLT-50Z

480

550

40

26

42

38

≤5

2050x280x200

2300x400x350

12

DLT-70Z

680

750

40

26

42

38

≤5

2050x350x290

2300x500x400

12

产品特点

· 采用自有专利技术,内含一体化合光装置,汇聚光能量提高光束质量

· Adopted own patented technology, integrated light combining device, concentrate light energy and improve beam quality



· 光斑模式稳定

· Stable beam spot mode



· 单管输出,双管同步控制均可,功率输出连续可调(300P/30-300W 40Z/50-320W 50Z/50-550W 70Z/50-750W)

· Available for single tube output and double tubes synchronous control, continuous adjustable power output (300P/30-300W 40Z/50-320W 50Z/50-550W 70Z/50-750W)



· 全金属外壳结构,防护更全面,激光器重量:300P/26kg 40Z/26kg 50Z/50kg 70Z/87kg

· All metal structure, more comprehensive protection, laser weight:300P/26kg 40Z/26kg 50Z/50kg 70Z/87kg



· 激光器采用可阀封接技术,内含催化剂,产品性能更稳定,使用寿命可达10000小时以上

· With kovar sealing technology and inner catalyst, lifetime is over 10000 Hrs



· 新增工作状态可视窗,内含开盖保护

· Equipped controller of water and flow



· 新增水温、流量控制器,可在机器温度或水流量超出允许范围后断电保护

· With power-off protection function while the machine temperature or water flow exceeds the allowable range



· 应用优势:金属薄板材(3mm不锈钢、4mm碳钢)、非金属厚板材

· Applicable advantage: metal sheet (3mm stainless steel, 4mm carbon steel.),Non-metallic thick plate
