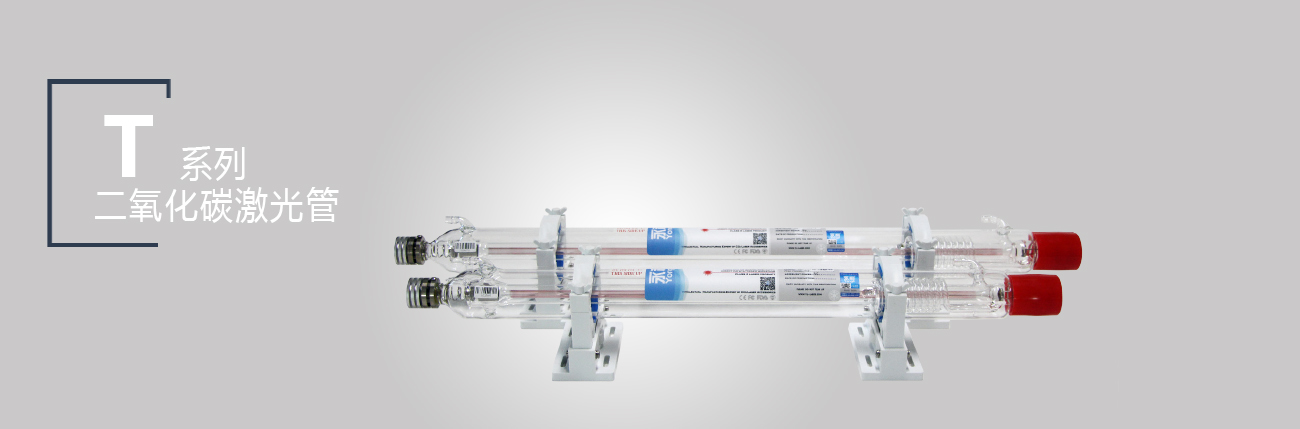

T系列激光管结合了H系列和As系列产品优点,体积小巧结构简单,光斑模式优良,脉冲特性媲美射频,可适用于非金属精细雕刻和打标。是您更新换代的不二选择。

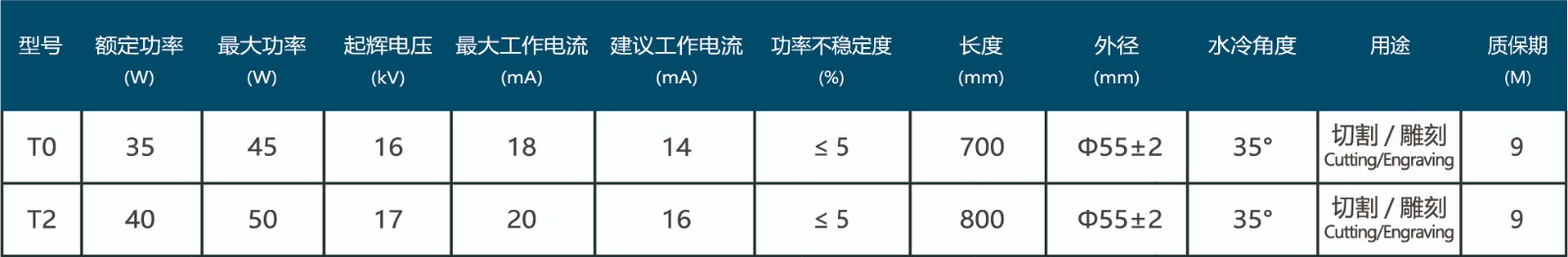

型号 Model | 长度 Length (mm) | 额定功率 Rated Power (W) | 最大功率 Max. Power (W) | 外径Dia.(mm) | 水冷角度 Angles Between Water Inlet & outlet | 起辉电压 Ignition Voltage(kV) | 工作电流 Working Current(mA) | 建议工作电流 Recommend Working Current(mA) | 催化剂 Catalyst | 功率不稳定度 Power Instability (%) | 用途 Application | 质保期 Warranty (M) |
T0 | 700 | 35 | 45 | Φ55±2 | 35° | 16 | 18 | 14 | yes | ≤±5 | 切割/雕刻 Cutting/Engraving | 9 |
T2 | 800 | 40 | 50 | Φ55±2 | 35° | 17 | 20 | 16 | yes | ≤±5 | 切割/雕刻 Cutting/Engraving | 9 |
注:其他规格可定制
Note: Other Specification can be customized
