Laser Power Supply

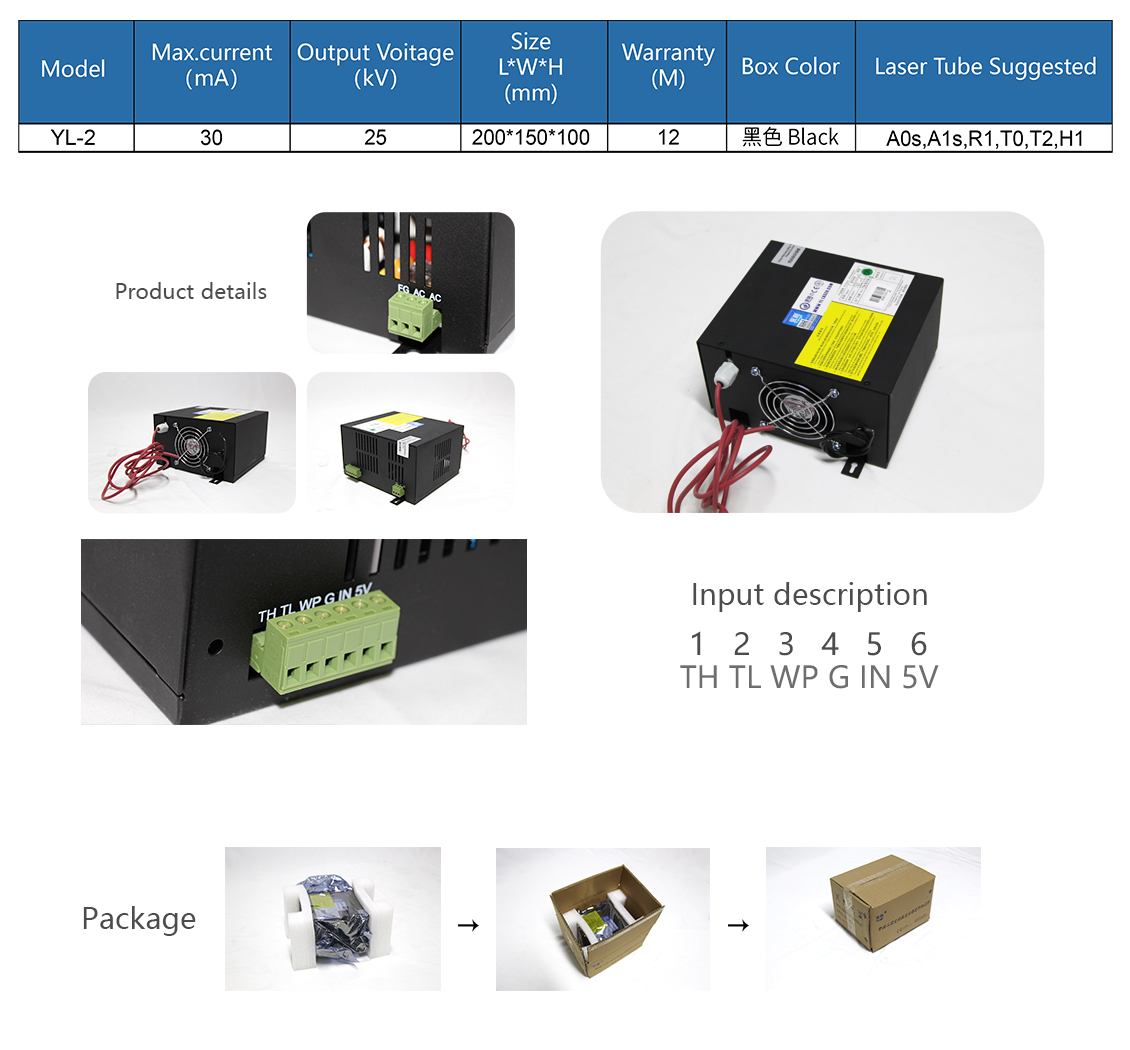

Product details
The power supply is specifically developed for our CO₂ laser tubes. It features stable performance, strong anti-interference capability, portability, and excellent durability against aging.
Product outline
| TH | Input Signal | Laser output in TTL high level (≥ 3V), Laser off in low level (≤ 0.3V) |
| TLaserL | Input Signal | Laser output in TTL high level (≥ 3V), Laser off in low level (≤ 0.3V) |
| WP | Protection Interface | Short-circuit When not in use |
| G | Signal Ground | This pin must be connected with Ground of the machine shell and control board |
| IN | Input Signal | 0-5V Analogue Signals or PWM Signals (1≥20KHz) |
| 5V | Output Power | Output Voltage: 5V / Max Output Current: 50mA |
