Product details

Adopting our own patented technology to modify the beam size and beam quality with a physical approach, which solves the beam distortion, increased the output power. Inner lens upgraded. All inner lens and mirror are imported and customized by the U.S.II-VI Infrared. Yongli adopts new catalytic technology to enhance the coating firmness of discharge tube and catalytic consumption. The As laser tubes are more stable on longtime and continue laser working and lifespan is longer. A6s and A8s are capable of cutting thin metal and thick non-metal materials with a better cutting performance.

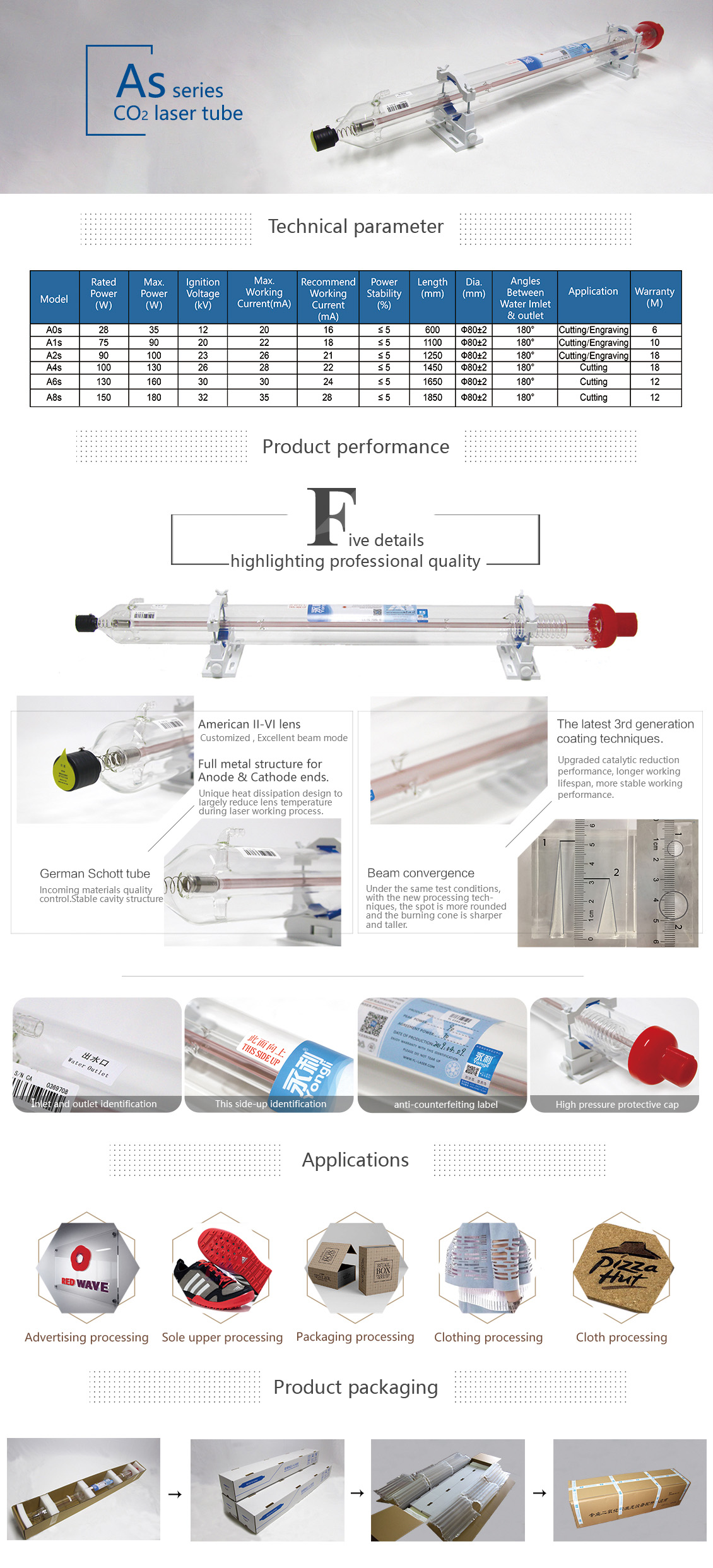

Product outline



Yongli A0s CO2 Laser Tube

Rated Power

 28W

Peak Power

 35W

Length

 600mm

Red Point Indicator

Optional

Working Current

 20mA

Recommend Working Current

16mA

Ignition Voltage

12kV

Working Voltage

 8kV

Outer Diameter

 80mm

Working Life

 6000 Hours

Warranty

 6 Months

Catalyst

 YES
